VLM-R低压管路过滤器

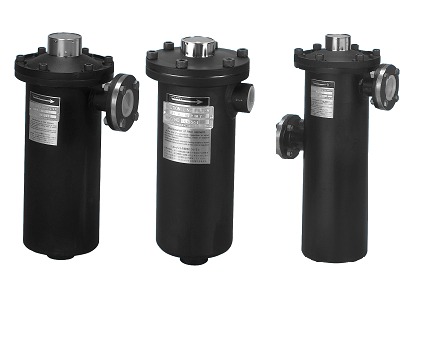

产品外观
VLM-R 产品图片待补充
VLM-R低压管路过滤器
产品特点
- 大流量吸油管路过滤器，通径 4～6（32～48）
- 配备堵塞检测装置
- 滤芯材质：不锈钢丝网，过滤精度 10~400μm
- 可选法兰安装方式
型号代码 示例：W-VLM08DR-10P08T
※
流体种类
| 符号 | 流体 |
|---|---|
| 无符号 | 普通矿物油 |
| W | 水乙二醇 |
| F | 磷酸酯油 |
| QE | 脂肪酸酯油 |
VLM-R
型号
※
附件
| 符号 | 类型 |
|---|---|
| 无符号 | 目视指示器 |
| E | 电接点指示器 |
| M | 磁铁 |
08
系列号
D
IN口位置
| 符号 | 方式 |
|---|---|
| 无符号 | 标准型 |
| D | 错位连接 |
10P
过滤精度(μm)
滤材
滤材
| 精度范围 | 滤材 |
|---|---|
| 3,5,10,20,40 | P(纸) |
| 5~400 | S(不锈钢网) |
| 60~250(04~16) | A(铝制网) |
08
连接口径
T
连接方式
常用型号 - VLM-R低压管路过滤器 | MASUDA增田原装进口
| 常用型号 |
|---|
| VLM04R-10P04T |
| VLM06R-10P06T |
| VLM08R-10P08T |
| VLM12R-10P12F |
| VLM16R-10P16F |
| VLM20R-10P20F |
| VLM24R-10P24F |
| VLM32R-10P32F |
| VLM40R-10P40F |
| VLM48R-10P48F |
| VLM12DR-10P12F |
| VLM16DR-10P16F |
| VLM20DR-10P20F |
| VLM24DR-10P24F |
| VLM32DR-10P32F |
| VLM40DR-10P40F |
| VLM48DR-10P48F |
| VLMM04R-10P04T |
| VLMM06R-10P06T |
| VLMM08R-10P08T |
| VLMM12R-10P12F |
| VLMM16R-10P16F |
| VLMM20R-10P20F |
| VLMM24R-10P24F |
| VLMM32R-10P32F |
| VLMM40R-10P40F |
| VLMM48R-10P48F |
| VLMM12DR-10P12F |
| VLMM16DR-10P16F |
| VLMM20DR-10P20F |
| VLMM24DR-10P24F |
| VLMM32DR-10P32F |
| VLMM40DR-10P40F |
| VLMM48DR-10P48F |
| VLME04R-10P04T |
| VLME06R-10P06T |
| VLME08R-10P08T |
| VLME12R-10P12F |
| VLME16R-10P16F |
| VLME20R-10P20F |
| VLME24R-10P24F |
| VLME32R-10P32F |
| VLME40R-10P40F |
| VLME48R-10P48F |
| VLME12DR-10P12F |
| VLME16DR-10P16F |
| VLME20DR-10P20F |
| VLME24DR-10P24F |
| VLME32DR-10P32F |
| VLME40DR-10P40F |
| VLME48DR-10P48F |
| W-VLM04R-10S04T |
| W-VLM06R-10S06T |
| W-VLM08R-10S08T |
| W-VLM12R-10S12F |
| W-VLM16R-10S16F |
| W-VLM20R-10S20F |
| W-VLM24R-10S24F |
| W-VLM32R-10S32F |
| W-VLM40R-10S40F |
| W-VLM48R-10S48F |
| W-VLM12DR-10S12F |
| W-VLM16DR-10S16F |
| W-VLM20DR-10S20F |
| W-VLM24DR-10S24F |
| W-VLM32DR-10S32F |
| W-VLM40DR-10S40F |
| W-VLM48DR-10S48F |
| W-VLMM04R-10S04T |
| W-VLMM06R-10S06T |
| W-VLMM08R-10S08T |
| W-VLMM12R-10S12F |
| W-VLMM16R-10S16F |
| W-VLMM20R-10S20F |
| W-VLMM24R-10S24F |
| W-VLMM32R-10S32F |
| W-VLMM40R-10S40F |
| W-VLMM48R-10S48F |
| W-VLMM12DR-10S12F |
| W-VLMM16DR-10S16F |
| W-VLMM20DR-10S20F |
| W-VLMM24DR-10S24F |
| W-VLMM32DR-10S32F |
| W-VLMM40DR-10S40F |
| W-VLMM48DR-10S48F |
| W-VLME04R-10S04T |
| W-VLME06R-10S06T |
| W-VLME08R-10S08T |
| W-VLME12R-10S12F |
| W-VLME16R-10S16F |
| W-VLME20R-10S20F |
| W-VLME24R-10S24F |
| W-VLME32R-10S32F |
| W-VLME40R-10S40F |
| W-VLME48R-10S48F |
| W-VLME12DR-10S12F |
| W-VLME16DR-10S16F |
| W-VLME20DR-10S20F |
| W-VLME24DR-10S24F |
| W-VLME32DR-10S32F |
| W-VLME40DR-10S40F |
| W-VLME48DR-10S48F |
| 常用型号 |
|---|
| F-VLM04R-10S04T |
| F-VLM06R-10S06T |
| F-VLM08R-10S08T |
| F-VLM12R-10S12F |
| F-VLM16R-10S16F |
| F-VLM20R-10S20F |
| F-VLM24R-10S24F |
| F-VLM32R-10S32F |
| F-VLM40R-10S40F |
| F-VLM48R-10S48F |
| F-VLM12DR-10S12F |
| F-VLM16DR-10S16F |
| F-VLM20DR-10S20F |
| F-VLM24DR-10S24F |
| F-VLM32DR-10S32F |
| F-VLM40DR-10S40F |
| F-VLM48DR-10S48F |
| F-VLMM04R-10S04T |
| F-VLMM06R-10S06T |
| F-VLMM08R-10S08T |
| F-VLMM12R-10S12F |
| F-VLMM16R-10S16F |
| F-VLMM20R-10S20F |
| F-VLMM24R-10S24F |
| F-VLMM32R-10S32F |
| F-VLMM40R-10S40F |
| F-VLMM48R-10S48F |
| F-VLMM12DR-10S12F |
| F-VLMM16DR-10S16F |
| F-VLMM20DR-10S20F |
| F-VLMM24DR-10S24F |
| F-VLMM32DR-10S32F |
| F-VLMM40DR-10S40F |
| F-VLMM48DR-10S48F |
| F-VLME04R-10S04T |
| F-VLME06R-10S06T |
| F-VLME08R-10S08T |
| F-VLME12R-10S12F |
| F-VLME16R-10S16F |
| F-VLME20R-10S20F |
| F-VLME24R-10S24F |
| F-VLME32R-10S32F |
| F-VLME40R-10S40F |
| F-VLME48R-10S48F |
| F-VLME12DR-10S12F |
| F-VLME16DR-10S16F |
| F-VLME20DR-10S20F |
| F-VLME24DR-10S24F |
| F-VLME32DR-10S32F |
| F-VLME40DR-10S40F |
| F-VLME48DR-10S48F |
| QE-VLM04R-10S04T |
| QE-VLM06R-10S06T |
| QE-VLM08R-10S08T |
| QE-VLM12R-10S12F |
| QE-VLM16R-10S16F |
| QE-VLM20R-10S20F |
| QE-VLM24R-10S24F |
| QE-VLM32R-10S32F |
| QE-VLM40R-10S40F |
| QE-VLM48R-10S48F |
| QE-VLM12DR-10S12F |
| QE-VLM16DR-10S16F |
| QE-VLM20DR-10S20F |
| QE-VLM24DR-10S24F |
| QE-VLM32DR-10S32F |
| QE-VLM40DR-10S40F |
| QE-VLM48DR-10S48F |
| QE-VLMM04R-10S04T |
| QE-VLMM06R-10S06T |
| QE-VLMM08R-10S08T |
| QE-VLMM12R-10S12F |
| QE-VLMM16R-10S16F |
| QE-VLMM20R-10S20F |
| QE-VLMM24R-10S24F |
| QE-VLMM32R-10S32F |
| QE-VLMM40R-10S40F |
| QE-VLMM48R-10S48F |
| QE-VLMM12DR-10S12F |
| QE-VLMM16DR-10S16F |
| QE-VLMM20DR-10S20F |
| QE-VLMM24DR-10S24F |
| QE-VLMM32DR-10S32F |
| QE-VLMM40DR-10S40F |
| QE-VLMM48DR-10S48F |
| QE-VLME04R-10S04T |
| QE-VLME06R-10S06T |
| QE-VLME08R-10S08T |
| QE-VLME12R-10S12F |
| QE-VLME16R-10S16F |
| QE-VLME20R-10S20F |
| QE-VLME24R-10S24F |
| QE-VLME32R-10S32F |
| QE-VLME40R-10S40F |
| QE-VLME48R-10S48F |
| QE-VLME12DR-10S12F |
| QE-VLME16DR-10S16F |
| QE-VLME20DR-10S20F |
| QE-VLME24DR-10S24F |
| QE-VLME32DR-10S32F |
| QE-VLME40DR-10S40F |
| QE-VLME48DR-10S48F |
| 配套滤芯 |
|---|
| M04-010P |
| M06-010P |
| M08-010P |
| M12-010P |
| M16-010P |
| M20-010P |
| M24-010P |
| M32-010P |
| M40-010P |
| M48-010P |
| M04-020P |
| M06-020P |
| M08-020P |
| M12-020P |
| M16-020P |
| M20-020P |
| M24-020P |
| M32-020P |
| M40-020P |
| M48-020P |
| M04-040P |
| M06-040P |
| M08-040P |
| M12-040P |
| M16-040P |
| M20-040P |
| M24-040P |
| M32-040P |
| M40-040P |
| M48-040P |
| M04-010SW-W |
| M06-010SW-W |
| M08-010SW-W |
| M12-010SW-W |
| M16-010SW-W |
| M20-010SW-W |
| M24-010SW-W |
| M32-010SW-W |
| M40-010SW-W |
| M48-010SW-W |
| M04-020SW-W |
| M06-020SW-W |
| M08-020SW-W |
| M12-020SW-W |
| M16-020SW-W |
| M20-020SW-W |
| M24-020SW-W |
| M32-020SW-W |
| M40-020SW-W |
| M48-020SW-W |
| M04-040SW-W |
| M06-040SW-W |
| M08-040SW-W |
| M12-040SW-W |
| M16-040SW-W |
| M20-040SW-W |
| M24-040SW-W |
| M32-040SW-W |
| M40-040SW-W |
| M48-040SW-W |
| M04-010SW-QE |
| M06-010SW-QE |
| M08-010SW-QE |
| M12-010SW-QE |
| M16-010SW-QE |
| M20-010SW-QE |
| M24-010SW-QE |
| M32-010SW-QE |
| M40-010SW-QE |
| M48-010SW-QE |
| M04-020SW-QE |
| M06-020SW-QE |
| M08-020SW-QE |
| M12-020SW-QE |
| M16-020SW-QE |
| M20-020SW-QE |
| M24-020SW-QE |
| M32-020SW-QE |
| M40-020SW-QE |
| M48-020SW-QE |
| M04-040SW-QE |
| M06-040SW-QE |
| M08-040SW-QE |
| M12-040SW-QE |
| M16-040SW-QE |
| M20-040SW-QE |
| M24-040SW-QE |
| M32-040SW-QE |
| M40-040SW-QE |
| M48-040SW-QE |
| M04-010SW-B |
| M06-010SW-B |
| M08-010SW-B |
| M12-010SW-B |
| M16-010SW-B |
| M20-010SW-B |
| M24-010SW-B |
| M32-010SW-B |
| M40-010SW-B |
| M48-010SW-B |
| M04-020SW-B |
| M06-020SW-B |
| M08-020SW-B |
| M12-020SW-B |
| M16-020SW-B |
| M20-020SW-B |
| M24-020SW-B |
| M32-020SW-B |
| M40-020SW-B |
| M48-020SW-B |
| M04-040SW-B |
| M06-040SW-B |
| M08-040SW-B |
| M12-040SW-B |
| M16-040SW-B |
| M20-040SW-B |
| M24-040SW-B |
| M32-040SW-B |
| M40-040SW-B |
| M48-040SW-B |
| M04-010SW-G |
| M06-010SW-G |
| M08-010SW-G |
| M12-010SW-G |
| M16-010SW-G |
| M20-010SW-G |
| M24-010SW-G |
| M32-010SW-G |
| M40-010SW-G |
| M48-010SW-G |
| M04-020SW-G |
| M06-020SW-G |
| M08-020SW-G |
| M12-020SW-G |
| M16-020SW-G |
| M20-020SW-G |
| M24-020SW-G |
| M32-020SW-G |
| M40-020SW-G |
| M48-020SW-G |
| M04-040SW-G |
| M06-040SW-G |
| M08-040SW-G |
| M12-040SW-G |
| M16-040SW-G |
| M20-040SW-G |
| M24-040SW-G |
| M32-040SW-G |
| M40-040SW-G |
| M48-040SW-G |
